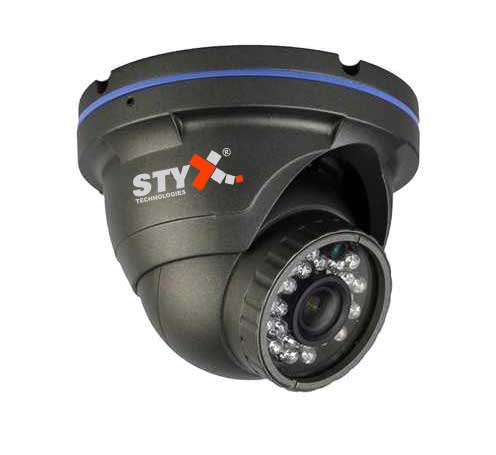

İç mekanlar için tasarlanmış olan güvenlik kamerası modelimiz, sağlam metal kasası ve kolay ayarlanabilir tasarımı ile farklı özelliklerle sizlere sunulmaktadır. HD kalitesinde görüntü alabileceğiniz AHD modelleri ve eşsiz özelliklerini inceleyebilirsiniz.
Image sensor | 1/4” progressive scan CMOS | 1/3” progressive scan CMOS | 1/3” progressive scan CMOS |
Min. illumination | 0.01 lux @F1.2, AGC ON, 0 lux with IR on | 0.01 lux @F1.2, AGC ON, 0 lux with IR on | 0.01 lux @F1.2, AGC ON, 0 lux with IR on |
Shutter time | AUTO/ 1/50(1/60)-1/100,000sec | ||
Lens | 3.6/6mm @F1.4 lens for optional ,Standard 3.6mm. | ||
Lens mount | M12(C) | ||
Day & night | Auto with IR ( default) / color / B&W (OSD switching) | ||
TV system | PAL/NTSC | ||
Digital noise reduction | 2DNR,3DNR. | ||
Backlight compensation | Auto | ||
White balance | Auto | ||
SNR | ≥50dB | ≥48dB | ≥80dB |
Video standard | AHD : AHD CVBS / HD-TVI : TVI CVBS. | ||
Optional increasing function | Optional replacement increased OSD menu line using the camera menu functions, the default is No. | ||
Resolution | |||
Sensor pixel | 1280(H)*800(V) | 1280(H)*1024(V) | 1984(H)*1225(V) |
Effective resolution | 1280(H)*720(V) | 1280(H)*960(V) | 1920(H)*1080(V) |
Video output | AHD:AHD CVBS/1.0Vp-p/75Ω HD-TVI : TVI CVBS/1.0Vp-p/75Ω | AHD:AHD CVBS/1.0Vp-p/75Ω HD-TVI : TVI CVBS/1.0Vp-p/75Ω | AHD:AHD CVBS/1.0Vp-p/75Ω HD-TVI : TVI CVBS/1.0Vp-p/75Ω |
Image settings | Saturation, brightness, contrast, sharpeness adjustable through the OSD menu function. | ||
Optional replacement increased OSD menu line using the camera menu functions, the default is No. | |||
Operating conditions | -30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) | ||
Power supply | 12 VDC ± 10% | ||
Power consumption | Max. 4.5W (6W with ICR on) | ||
Ingress protection level | IP66 | ||
IR range | 20m | ||
Dimensions | 120*120*90 | ||
Weight | 450g |
