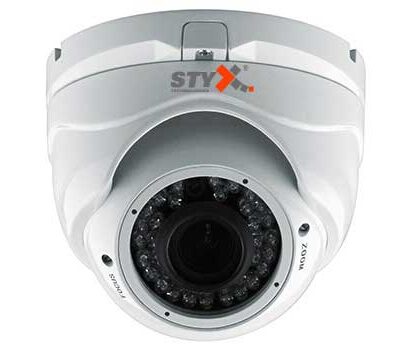

İç mekanlar için tasarlanmış olan güvenlik kamerası modelimiz, sağlam metal kasası ve kolay ayarlanabilir tasarımı ile farklı özelliklerle sizlere sunulmaktadır. HD kalitesinde görüntü alabileceğiniz AHD modelleri ve eşsiz özelliklerini inceleyebilirsiniz.
- AHD Dome SXBV02-720
-
-
USD 75 Adet
-
- Metal indoor dome
- 36pcs*￠5mm IR Leds,IR distance:30M
- Built-in 2.8-12mm manual zoom Lens.
- Standard color: White
- NVP2431H+AR0141
- CMOS Sensor, 720P(1.0MP)@25ps
-
- AHD Dome SXBV02-960
-
-
USD 85 Adet
-
- Metal indoor dome
- 36pcs*￠5mm IR Leds,IR distance:30M
- Built-in 2.8-12mm manual zoom lens.
- Standard color: WhiteMagna aliquam
- NVP2431H+AR0130
- CMOS Sensor, 960P(1.3MP)@25FPS
-
En İyi Seçim
- AHD Dome SXBV02-1080
-
-
USD 110 Adet
-
- Metal indoor dome
- 36pcs*￠5mm IR Leds,IR distance:30M
- Built-in 2.8-12mm manual zoom lens.
- Standard color: WhiteMagna aliquam
- NVP2441H+IMX322
- SONY Exmor Sensor, 1080P(2.0MP)@25FPS
-
Kameraların Teknik Özellikleri
| Image sensor | 1/4” progressive scan CMOS | 1/3” progressive scan CMOS | 1/3” progressive scan CMOS |
| Min. illumination | 0.01 lux @F1.2, AGC ON, 0 lux with IR on | 0.01 lux @F1.2, AGC ON, 0 lux with IR on | 0.01 lux @F1.2, AGC ON, 0 lux with IR on |
| Shutter time | AUTO/ 1/50（1/60）-1/100,000sec | ||
| Lens | 2.8 ~ 12 mm @F1.4, angle of view: 98.4° ~ 30.2° | ||
| Lens mount | Φ14 | ||
| Day & night | Auto with IR ( default) / color / B&W (OSD switching) | ||
| TV system | PAL/NTSC | ||
| Digital noise reduction | 2DNR,3DNR. | ||
| Backlight compensation | Auto | ||
| White balance | Auto | ||
| SNR | ≥50dB | ≥48dB | ≥80dB |
| Video standard | AHD : AHD CVBS / HD-TVI : TVI CVBS. | ||
| Optional increasing function | Optional replacement increased OSD menu line using the camera menu functions, the default is No. | ||
| Resolution | |||
| Sensor pixel | 1280(H)*800(V) | 1280(H)*1024(V) | 1984(H)*1225(V) |
| Effective resolution | 1280(H)*720(V) | 1280(H)*960(V) | 1920(H)*1080(V) |
| Video output | AHD:AHD CVBS/1.0Vp-p/75Ω HD-TVI : TVI CVBS/1.0Vp-p/75Ω | AHD:AHD CVBS/1.0Vp-p/75Ω HD-TVI : TVI CVBS/1.0Vp-p/75Ω | AHD:AHD CVBS/1.0Vp-p/75Ω HD-TVI : TVI CVBS/1.0Vp-p/75Ω |
| Image settings | Saturation, brightness, contrast, sharpeness adjustable through the OSD menu function. | ||
| Optional replacement increased OSD menu line using the camera menu functions, the default is No. | |||
| Operating conditions | -30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) | ||
| Power supply | 12 VDC ± 10% | ||
| Power consumption | Max. 5.5W (7W with ICR on) | ||
| Ingress protection level | IP66 | ||
| IR range | 35m | ||
| Dimensions | 290*100*90 | ||
| Weight | 1000g | ||
