Gerek İç mekanlar gerekse dış mekanlar için tasarlanmış olan güvenlik kamerası modelimiz, Şık görünümü ve sağlam yapısıyla Network Altyapınıza kolayca dahil edebileceğiniz, çok kaliteli dijital görüntü kalitesi ile farklı sensör ve lens seçenekleri ile sizlere sunulmaktadır. Sizler için en uygun olanı seçebilir ve Güvenlik Kamera sisteminize bu güvenlik kameramızı dahil edebilirsiniz.
- IP Dome Kamera STB5NET130
-
-
USD 00 Adet
-

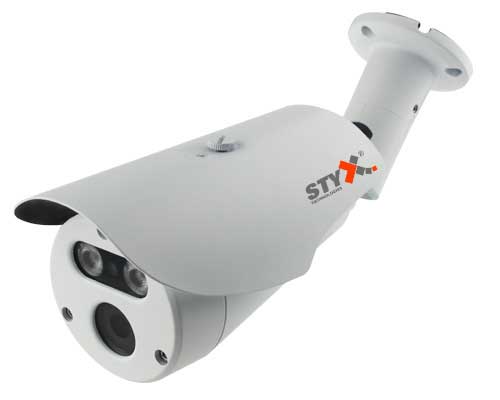

- Metal Outdoor Bullet Ip66
- 2pcs*￠42mm IR Leds,IR distance:40M
- Built-in 2MP /F2 CS 6mm Fixed Lens.
- IMX225+HI3518C
- CMOS Sensor, 960P(1.3MP)@25fps
- Support ONVIF 2.4
- RJ-45 (10/100Base-T) / POE Optional
-
En Çok Satılan
- IP Dome STB5NET200
-
-
USD 00 Adet
-
- Metal Outdoor Bullet Ip66
- 2pcs*￠42mm IR Leds,IR distance:40M
- Built-in 3MP /F2 CS 6mm Fixed Lens.
- IMX322+HI3516C
- CMOS Sensor,1080P(2MP)@25fps
- Support ONVIF 2.4
- RJ-45 (10/100Base-T) / POE Optional
-
- IP Dome STB5NET300
-
-
USD 00 Adet
-
- Metal Outdoor Bullet Ip66
- 2pcs*￠42mm IR Leds,IR distance:40M
- Built-in 3MP /F2 CS 6mm Fixed Lens.
- IMX124+S2L
- CMOS Sensor,1536P(3MP)@30fps
- Support ONVIF 2.4
- RJ-45 (10/100Base-T) / POE Optional
-
- IP Dome STB5NET500
-
-
USD 00 Adet
-
- Metal Outdoor Bullet Ip66
- 2pcs*￠42mm IR Leds,IR distance:40M
- Built-in 5MP /F2 CS 6mm Fixed Lens.
- IMX178+Hi3516A
- CMOS Sensor,1944P(5MP)@30fps
- Support ONVIF 2.4
- RJ-45 (10/100Base-T) / POE Optional
-
<
| Model NO. | STB5NET100 | STB5NET130 | STB5NET200 | STB5NET300 | STB5NET500 | |||||
| Camera | ||||||||||
| Image Sensor | OV9732 | IMX225 | IMX322 | IMX124 | IMX178 | |||||
| Main processor | GM8135S | HI3518C | HI3516C | S2L | Hi3516A | |||||
| Resolution | 720P | 960P | 1080P | 3MP | 5MP | |||||
| Effective Pixels | 1280(H)*720(V) | 1280(H)*960(V) | 1920(H)*1080(V) | 2048(H)*1536(V) | 2592(H)*1944(V) | |||||
| TV System | PAL/NTSC | |||||||||
| Electronic Shutter Time | Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec | |||||||||
| S/N Ratio | ≥52dB | |||||||||
| Scanning System | Progressive | |||||||||
| Video Output | Network | |||||||||
| Lens | ||||||||||
| Focus Length | Board Lens CS 6mm/F2.0 | |||||||||
| Focus Control | Fixed | |||||||||
| Lens Type | Fixed | |||||||||
| Pixels | 2M Pixels | 2M Pixels | 3M Pixels | 3M Pixels | 5M Pixels | |||||
| Night Vision | ||||||||||
| Infrared LED | ￠42 x 2PCS | |||||||||
| Infrared Distance | 40M | |||||||||
| IR Status | Under 10 Lux By CDS | |||||||||
| IR Power On | CDS Auto Control | |||||||||
| Network | ||||||||||
| Ethernet | RJ-45 (10/100Base-T) | |||||||||
| Protocol | IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS | |||||||||
| ONVIF | Support ONVIF 2.4 | |||||||||
| P2P | YES, Support QR Code | |||||||||
| POE | Optional, Support IEEE 802.3af | |||||||||
| WIFI | N/A | |||||||||
| Video Delay | 0.3S (Within the Lan) | |||||||||
| Main Stream | 1280*960@30fps | 1280*960 & 1280×720@25fps | 1920*1080 & 1280*720 | 2048*1536 & 1920*1080@25fps@30fps | 2592*1944 &2048*1520 &1920*1080@30fps | |||||
| @25fps | ||||||||||
| Sub Stream | 720*480@30fps | 720*480@25fps | 720*480@25fps | 720*480&640*360@25fps@30fps | 720*480@30fps | |||||
| IE Brower | IE6-11, Google Chrome(IE Tab), Firefox(IE Tab) | |||||||||
| Smart Phone | iPhone, iPad, Android, Android Pad | |||||||||
| Camera Features | ||||||||||
| Day/Night | Color/ B&W (IR-CUT ) | |||||||||
| Compression | H.264/JPEG,Support record AVI format. | |||||||||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control) | |||||||||
| Motion Detection | Support | |||||||||
| Privacy Masking | 3 Rectangular Zone | |||||||||
| DWDR | YES | |||||||||
| Recording Mode | NVR/NAS/CMS/Web | |||||||||
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian | |||||||||
| General | ||||||||||
| Housing | Metal – IP66 | |||||||||
| Anti-cut Bracket | YES, Anti-Cut Bracket | |||||||||
| IR Cut Filter | YES | |||||||||
| Operation Temperature | -10℃ ~ +50℃ RH95% Max | |||||||||
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |||||||||
| Power Source | DC12V±10%, 700mA | |||||||||
| Dimension | 177(W) x 76(H) x 74(D)mm | |||||||||
| Weight | 700g | |||||||||
